2300-2700MHz基站天线

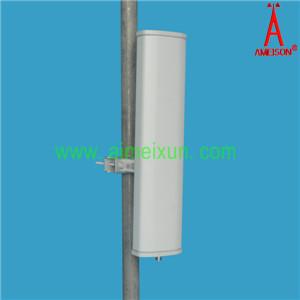

产品名称:2300-2700MHz定向板状天线
应用Application:
● 2.3/2.7 GHz WLAN 系统 2.3/2.7 GHz WLAN system
● 2.3/2.7 GHz ISM 频段 2.3/2.7 GHz ISM band
●公共无线热点覆盖 public wireless hot spot coverage
● WiFi 系统 Wi-Fi system
  • 产品描述


2300-2700MHz
定向板状天线

2300-2700MHz Directional Panel Antenna

AMXP-2327V-D14L90

电气参数 Electrical Specifications

频率范围 Frequency rangeMHz

23002700

极化方式 Polarization

垂直Vertical

增益 GaindBi

14

半功率波瓣宽度half-power beam width

H:90 V:14

前后比Front-to-back ratiodB

≥23

输入阻抗Input ImpedanceΩ

50

电压驻波比 VSWR

≤1.5

上第一副瓣抑制Sidelobe suppression for first sidelobe above horizon

15 dB

最大功率Maximum input powerW

200

雷电保护Lightning protection

直流接地DC Ground

机械参数Mechanical Specifications

接头类型Input connector type

N母头 N Female

天线尺寸Dimensions-mm (Height/Width/Depth)

500*114*54

包装尺寸Packing sizemm

530*130*110

天线重量Antenna weight kg

4

天线罩材料Radome material

UPVC

天线罩颜色Radome color

灰色Gray

机械可调倾角Mechanical tilt

010

工作温度Operating temperature:c

-4060

极限风速Rated Wind Velocitym/s

60

抱杆直径Mounting hardwaremm

3575
