2400-2500MHz基站天线

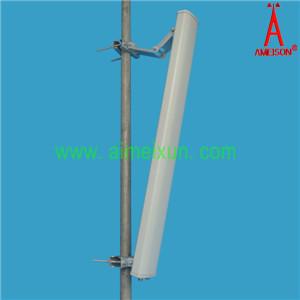

产品名称:2400-2500MHz定向板状天线
应用Application:
● 2.4 GHz WLAN 系统 2.4 GHz WLAN system
●公共无线热点覆盖 Public wireless hot spot coverage
● WiFi 系统 Wi-Fi system
  • 产品描述
 2400-2500MHz定向板状天线

2400-2500MHz Directional Panel Antenna

AMXP-2425VH-D16L120

电气参数  Electrical Specifications

频率范围 Frequency rangeMHz

24002500

极化方式 Polarization

垂直和水平Vertical and Horizontal

增益 GaindBi

2×16

半功率波瓣宽度half-power beam width°

H:120   V:7

前后比Front-to-back ratiodB

≥18

输入阻抗Input ImpedanceΩ

50

电压驻波比 VSWR

≤1.5

隔离度Isolation between ports

≥28dB

交叉极化鉴别率Cross-polar ratio

≥15dB@0º     ≥10dB@+/-60º

上第一副瓣抑制Sidelobe suppression for first sidelobe above horizon

15 dB

最大功率Maximum input powerW

200

雷电保护Lightning protection

直流接地DC Ground

机械参数Mechanical Specifications

接头类型Input connector type

2-N母头  2-N Female

天线尺寸Dimensions-mm (Height/Width/Depth)

1200*114*54

包装尺寸Packing sizemm

 1280*155*145

天线重量Antenna weight kg

6

天线罩材料Radome material

UPVC

天线罩颜色Radome color

灰色Gray

机械可调倾角Mechanical tilt°

010

工作温度Operating temperature°c

-4060

极限风速Rated Wind Velocitym/s

60

抱杆直径Mounting hardwaremm

3575
