5.8G平板天线

产品名称:5725-5850MHz定向壁挂天线
应用Application:
● 5.8GHZ WLAN系统 5.8GHZ WLAN system
● 无线接入系统 Wireless access system
● 无线桥接Wireless bridging
  • 产品描述

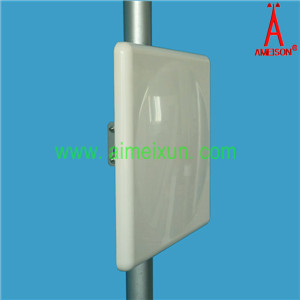

 5725-5850MHz定向壁挂天线

5725-5850MHz Directional Wall Mount Antenna

AMXW-5800-23

电气参数 Electrical Specifications

频率范围 Frequency rangeMHz

5725-5850

带宽 BandwidthMHz

125

增益 GaindBi

23

半功率波瓣宽度 Half-power beam width°

H11    V11

驻波比VSWR

≤1.5

输入阻抗Input ImpedanceΩ

50

极化方式Polarization

垂直Vertical

最大功率 Maximum input powerW

50

雷电保护Lightning protection

直流接地 DC Ground

接头型号Input connector type

N型母头或用户指定N Female or Requested

机械参数 Mechanical Specifications

天线尺寸Dimensions-mm (Height/Width/Depth)

305×305×20

天线重量Antenna weightkg

1.5

工作温度Operating temperature°c

-4060

极限风速Rated Wind Velocitym/s

60

天线罩材料Radome material

ABS

天线罩颜色Radome color

白色white

安装方式Mounting way

抱杆式 pole-holding

抱杆直径Mounting hardwaremm

35-50
