3.5G平板天线

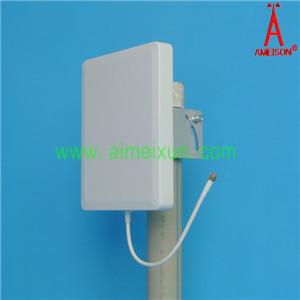

产品名称:3400-3600MHz定向壁挂天线
应用Application:
● 3.5G无线接入覆盖3.5G wireless access coverage
● 无线通信和数据传输系统 Wireless communication
and data transmission system
  • 产品描述
 3400-3600MHz定向壁挂天线

3400-3600MHz Directional Wall Mount Antenna

AMXW-3500-14

电气参数 Electrical Specifications

频率范围 Frequency rangeMHz

3400-3600

带宽 BandwidthMHz

200

增益 GaindBi

14

半功率波瓣宽度 Half-power beam width°

H30   V30

驻波比VSWR

≤1.5

输入阻抗Input ImpedanceΩ

50

极化方式Polarization

垂直Vertical

最大功率 Maximum input powerW

50

雷电保护Lightning protection

直流接地 DC Ground

接头型号Input connector type

SMA型公头或用户指定SMA Male or Requested

机械参数 Mechanical Specifications

天线尺寸Dimensions-mm (Height/Width/Depth)

218*173*24

天线重量Antenna weightkg

0.45

工作温度Operating temperature°c

-4060

极限风速Rated Wind Velocitym/s

60

天线罩材料Radome material

ABS

天线罩颜色Radome color

白色white

抱杆直径 Mounting hardwaremm

35-50
