全向玻璃钢天线

产品名称:2500-2700MHz全向玻璃钢天线
应用Application:
●LTE 系统 LTE system
●点对多点Point-to-multipoint system
  • 产品描述

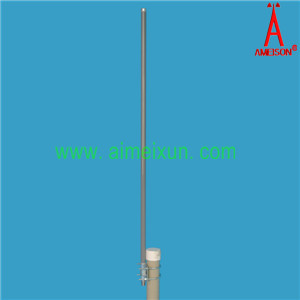

 2500-2700MHz全向玻璃钢天线

2500-2700MHz Omnidirectional Fiberglass Antenna


AMXF-2527-12

电气参数 Electrical Specifications

频率范围 Frequency rangeMHz

25002700

带宽 BandwidthMHz

200

增益 GaindBi

12

半功率波瓣宽度 Half-power beam width°

H:360    V:6

电压驻波比VSWR

≤1.5

输入阻抗Input ImpedanceΩ

50

极化方式Polarization

垂直Vertical

最大功率 Maximum input powerW

100

雷电保护Lightning protection

直流接地 DC Ground

接头型号Input connector type

N型母头或用户指定 N Female or Requested

机械参数 Mechanical Specifications

天线尺寸 Dimensions (mm)

Φ20*1100

天线重量 Antenna weightkg

0.51

工作温度 Operating temperature°c

-4060

极限风速Rated Wind Velocitym/s

60

天线罩颜色Radome color

灰色Gray

安装方式Mounting way

抱杆式Pole-holding

抱杆直径 Mounting hardwaremm

35-50
