定向八木天线

产品名称:1200MHz定向八木天线
应用Application:
● 1.2GHz系统 1.2GHz system
●点对点、点对多点系统Point-to-point,point-to-multipoint system
●无线桥接、客户终端天线Wireless bridging,client terminal antennas
  • 产品描述

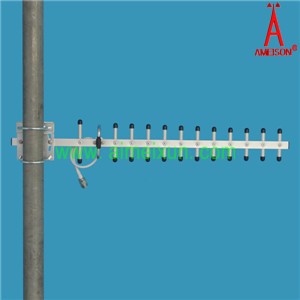

1200MHz定向八木天线

1200MHz Directional Yagi Antenna

AMXY-1200-15

电气参数 Electrical Specifications

频率范围 Frequency rangeMHz

1100-1300

带宽 BandwidthMHz

200

增益 GaindBi

15

单元 Element

13

半功率波瓣宽度 Half-power beam width°

H40  V37

前后比Front-to-back ratiodB

≥16

驻波比VSWR

≤2.0

输入阻抗Input ImpedanceΩ

50

极化方式Polarization

水平或垂直Horizontal or Vertical

最大功率 Maximum input powerW

100

雷电保护Lightning protection

直流接地 DC Ground

接头型号Input connector type

N母头或其它N female or Requested

机械参数 Mechanical Specifications

天线尺寸Dimensions(mm)

810*130*56

电缆长度 Cable lengthm

0.3

天线重量 Antenna weightkg

0.45

工作温度 Operating temperature°c

-4060

极限风速Rated Wind Velocitym/s

60

夹码 Clamp

UU-shape

抱杆直径 Mounting hardwaremm

Φ35Φ50
