3.5G基站天线

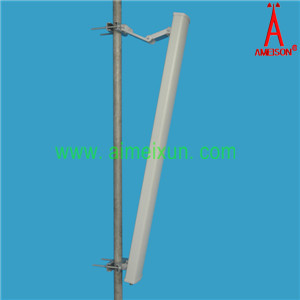

产品名称:3300-3800MHz定向板状天线
应用Application:
●3.3G~3.8G无线接入覆盖
●3.3G~3.8G wireless access coverage
  • 产品描述
 3300-3800MHz定向板状天线

3300-3800MHz Directional Panel Antenna

AMXP-3338V-D17L90

电气参数  Electrical Specifications

频率范围 Frequency rangeMHz

33003800

极化方式 Polarization

垂直Vertical

增益 GaindBi

16.5

半功率波瓣宽度half-power beam width°

H:90   V:7

前后比Front-to-back ratiodB

≥23

输入阻抗Input ImpedanceΩ

50

电压驻波比 VSWR

≤1.5

上第一副瓣抑制Sidelobe suppression for first sidelobe above horizon

15 dB

最大功率Maximum input powerW

200

雷电保护Lightning protection

直流接地DC Ground

机械参数Mechanical Specifications

接头类型Input connector type

N母头  N Female

天线尺寸Dimensions-mm (Height/Width/Depth)

760*114*54

包装尺寸Packing sizemm

800*155*145

天线重量Antenna weight kg

3.6

天线罩材料Radome material

UPVC

天线罩颜色Radome color

灰色Gray

机械可调倾角Mechanical tilt°

010

工作温度Operating temperature:°c

-4060

极限风速Rated Wind Velocitym/s

60

抱杆直径Mounting hardwaremm

3575
